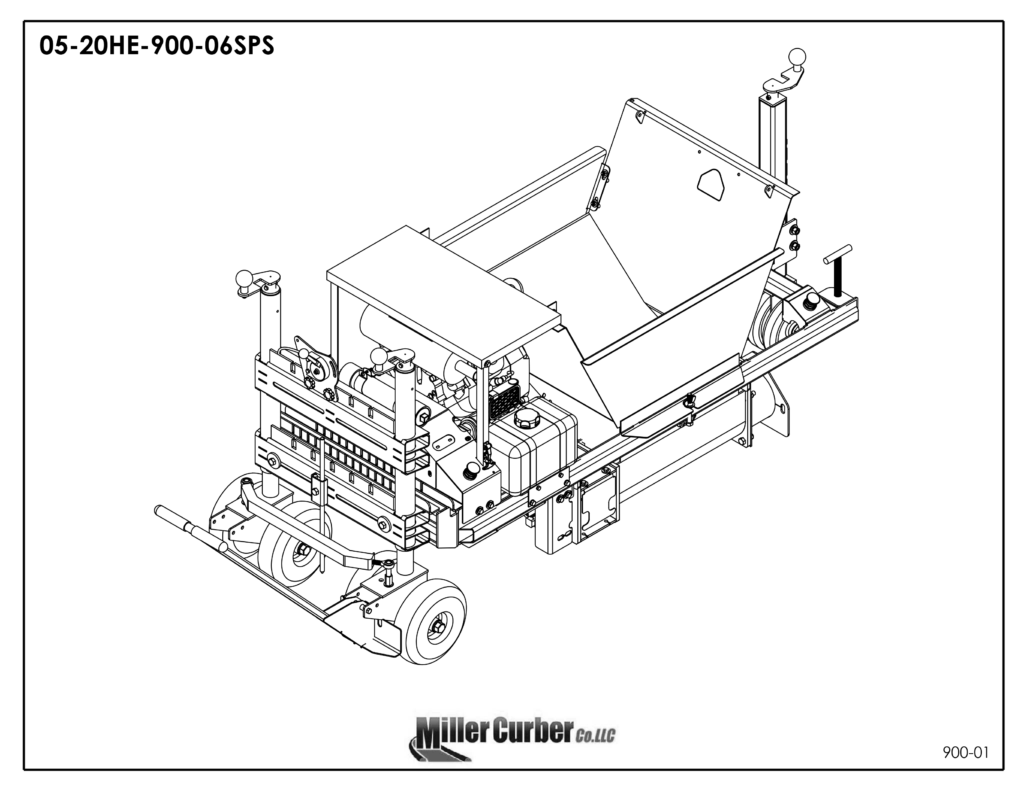

900 Parts

To help us find your part, look through the images of your particular machine, then copy and paste the item no. part number description into the Parts Finder text box under – List the parts you need. Assemblies at the bottom, please scroll down.

---

ITEM NO. PART NUMBER DESCRIPTION

Copy and paste the part’s – item no. part number description – into the Parts Finder text box under – List the parts you need. Then click NEXT to complete the form. Assemblies at bottom, please scroll down.

---

1 45027-01 MC 900 FRAME
2 45013-13 MC 900 HOPPER
3 45140-25 FRAME EXT. MC850/900
4 HHCS, 1/2-13 UNC x 3″ LG.
5 45140-31 FRONT END CLAMP WASHER
6 45003-11 CURBFORM HOLD DOWN SCREW
7 45012-13 HOPPER CLAMP
8 HHCS, 3/8-16 UNC x 2-1/2″ LG.
9 LOCK NUT, 3/8-16 UNC
10 FLAT WASHER, 1/2″
11 WING NUT, 1/2-13 UNC
12 45050-18 CHAIN GAURD
13 USS FLAT WASHER, 3/8″
14 LOCK WASHER, 3/8″
15 HHCS, 3/8-16 x 1″ LG.
16 45043-04 EMERGENCY STOP SWITCH, ELECTRIC START
17 MS0200 RUBBER HOOD LATCH
18 45145-20 ENGINE COVER W/ LABELS
19 45145-10 ENGINE COVER BRACE
20 45035-01 LIFTING LUG
21 HHCS, 1/2-13 UNC x 1-3/4″ LG.
22 SAE FLAT WASHER, 1/2″

23 LOCK NUT, 1/2-13 UNC
24 45157-02 FUEL TANK BRACKET
25 SAE FLAT WASHER, 5/16″
26 HHCS, 5/16-18 UNC x 1″ LG.
27 NYLOK LOCK NUT, 5/16-18 UNC
28 45145-17 RETRACTABLE PLUNGER
29 45013-17 MC 900 HOPPER ADJ. PLATE
30 45013-18 MC 900 HOPPER REMOVABLE SIDE PLATE
31 LOCK WASHER, 1/4″
32 HHCS, 3/8-16 UNC x 1-1/4″ LG.
33 HHCS, 1/4-20 UNC x 3/4″ LG.
34 HHCS, 5/16-18 UNC x 3/4″ LG.
35 45157-01 PLASTIC FUEL TANK
36 45002-11 MC-860/900 MOTOR MOUNT
37 45016-17 IDLER BRACKET WELDMENT
38 45016-18 IDLER BRACKET RETAINING PLATE
39 45016-21 IDLER BRACKET TUBE
40 42108-07 3/8″ CAGE NUT
41 45016-11 IDLER SPROCKET
42 45050-02 2 GROOVE Q.D. SHEAVE
43 45050-03 Q.D. BUSHING FOR 4050-02
44 45050-05 GEAR REDUCER

45 BE0100 1-1/4″ 2-BOLT FLANGE BEARING
46 45050-23 COG “V” BELT
47 45050-16 OUTPUT SHAFT
48 SK0300 23 TOOTH SPROCKET
49 45024-03 SAFETY TORQUE ARM
50 HHCS, 1/2-13 UNC x 1-1/2″ LG.
51 45008-10 SHEAVE GAURD
52 SHOULDER BOLT, 5/8-11 UNC x 3/4 DIA x 2″ LG.
53 BE0200 1-1/4″ 4-BOLT FLANGE BEARING
54 HEX NUT, 1/2-13 UNC
55 LOCK WASHER, 1/2″
56 HHCS, 1/2-13 UNC x 1-1/4″ LG.
57 SAE FLAT WASHER, 3/8″
58 HHCS, 3/8-16 UNC x 3/4″ LG.
59 HHCS, 5/16-18 UNC x 1-1/2″ LG.
60 HHCS, 1/2-13 UNC x 7-1/2″ LG.
61 HHCS, 3/8-16 UNC x 4″ LG.
62 45024-02 TORQUE ARM COMPRESSION SPRING
63 45024-09 SAFETY TORQUE ARM HANDLE
64 45024-14 SAFETY TORQUE ARM STUD
65 45024-04 SAFETY TORQUE ARM BRACKET
66 HEX NUT, 5/8-11 UNC

67 45151-01 20.3 HP HONDA ENGINE
68 45151-07 HONDA MUFFLER FOR MC-850/900
69 CL0200 CLUTCH, 1″ BORE, HVY. DUTY
70 HHCS, 3/8-16 UNC x 1-3/4″ LG.
71 45033-07 TALL WHEEL BRACKET HVY DTY
72 45036-11 JACK HANDLE ASSEMBLY
73 BE0600 JACK ASSEMBLY THRUST BEARING
74 45032-10 JACK SCREW, TALL WHEEL ASSEMBLY
75 MS0400 JACK HANDLE KNOB
76 45039-07 TALL REAR WHEEL FORK ASSEMBLY
77 45032-03 TALL REAR WHEEL HSG ASSY
78 45094-14 8″ x 2-1/2″ RUBBER WHEEL W/ROLLER BEARING
79 45094-16 AXEL, 3/4-10NC x 11″ LG W/ LOCKNUTS
80 USS FLAT WASHER, 3/4″
81 47132-24 CARRIAGE BOLT, 1/2-13 UNC x 3-1/2″ LG.
82 47139-37 CARRIAGE BOLT, 1/2-13 UNC x 3″ LG.
83 HHCS, 1/4-20 UNC x 1-1/2″ LG.
84 LOCK NUT, 1/4-20 UNC
85 45131-03 THROTTLE PLATE CLAMP
86 45131-02 THROTTLE MOUNTING PLATE
87 45132-43 THROTTLE CONTROL
88 HHCS, 1/4-20 UNC x 1-1/4″ LG.

89 45132-44 BULK HEAD FITTING
90 45131-07 20.3 HP HONDA THROTTLE CABLE ASSY.
91 45130-27 HONDA THROTTLE WIRE SWIVEL
92 45026-01 TALL FRONT WHEEL FORK
93 45038-06 TALL FRONT WHEEL FORK
94 45020-13 STEERING HANDLE W/ GRIPS
95 CG0100 GRIP, HANDLEBAR
96 45140-23 CENTER WHEEL SPACER
97 45140-11 PNEUMATIC WHEEL SPACER
98 45140-12 PNEUMATIC TIRE AND RIM ASSY
99 45140-10 AXEL, 3/4-10NC x 12″ LG W/ LOCKNUTS
100 45031-17 CURBER MARKING ROD BACKPLATE
101 45031-11 MC-550/650/850 MARKER POINTER
102 45031-21 FRONT END CLAMP RETAINING NUT
103 45031-18 MARKER HOLDER ROD BRACKET
104 HHCS, 1/2-13 UNC x 6-1/2″ LG.
105 45059-08 TIE ROD
106 45059-04 MALE TIE ROD END W/ STUD
107 45059-11 COUPLING NUT, 1/2-20 UNF x 1-1/4″ LG.
108 HHCS, 1/2-20 UNF x 1″ LG.
109 48200-26 THROTTLE MOUNT KNOB
110 SK0200 15 TOOTH SPROCKET

111 45050-10 ROLLER CHAIN, 37″ LONG
112 45023-19 MC 900 SOLID TRIPLE AUGER SHAFT
113 45018-09 6″ SOLID AUGER, 9″ LONG
114 45010-12 6″ AUGUR SHAFT GAURD
115 45014-01 6″ COMPACTION TUBE
116 45011-81 6″ TRIPLE AUGER HOUSING W/SHAFT GUARDS
117 45019-29 CENTER BELT GUARD COVER
118 45019-18 RIGHT HAND BELT GUARD WELDMENT
119 45019-19 LEFT HAND BELT GUARD WELDMENT
120 44108-06 MANUAL TUBE MOUNTING CLAMPS
121 44108-01 MANUAL TUBE
122 44108-05 MANUAL TUBE CAP
123 BT0100 BATTERY, 12V DC
124 BF0100 36″ BATTERY POSITIVE CABLE
125 BF0200 BATTERY GROUND CABLE
126 45116-23 BATTERY BOX BOLTS
127 HEX NUT, 3/8-16 UNC
128 45116-31 MC 900 BATTERY BOX SIDE
129 45116-32 MC 900 BATTERY BOX BOTTOM
130 45116-33 MC 900 BATTERY BOX TOP
131 LOCK NUT, 5/16-18 UNC

---

Assemblies

Tall Front End Assembly consists of: 45026-01, 45036-11, MS0400, 45031-21, 45032-10, BE0600, & tie rod assembly

Tie Rod Assembly consists of part numbers: 45059-08, 45059-11, 45059-12, 45059-04

Tall Rear End Assembly consists of: 45158-07, BE0600, 45032-03, 45032-10, 45036-11, MS0400

6″ Solid Auger Assembly consists of: 445011-81, 45023-19, 45018-09, 45014-01, BE0200, SK0300

8″ Solid Auger Assembly consists of: 45034-12, 45023-01, 45126-01, 45014-01, BE0200, SK0300

Throttle Assembly consists of: 45130-23, 45132-43, 45130-24, 45130-27, 45123-44, 40120-11

Idler Sprocket Assembly Consists of: 45016-10, 45016-17, 45016-21, 45016-22, 45016-18

---
