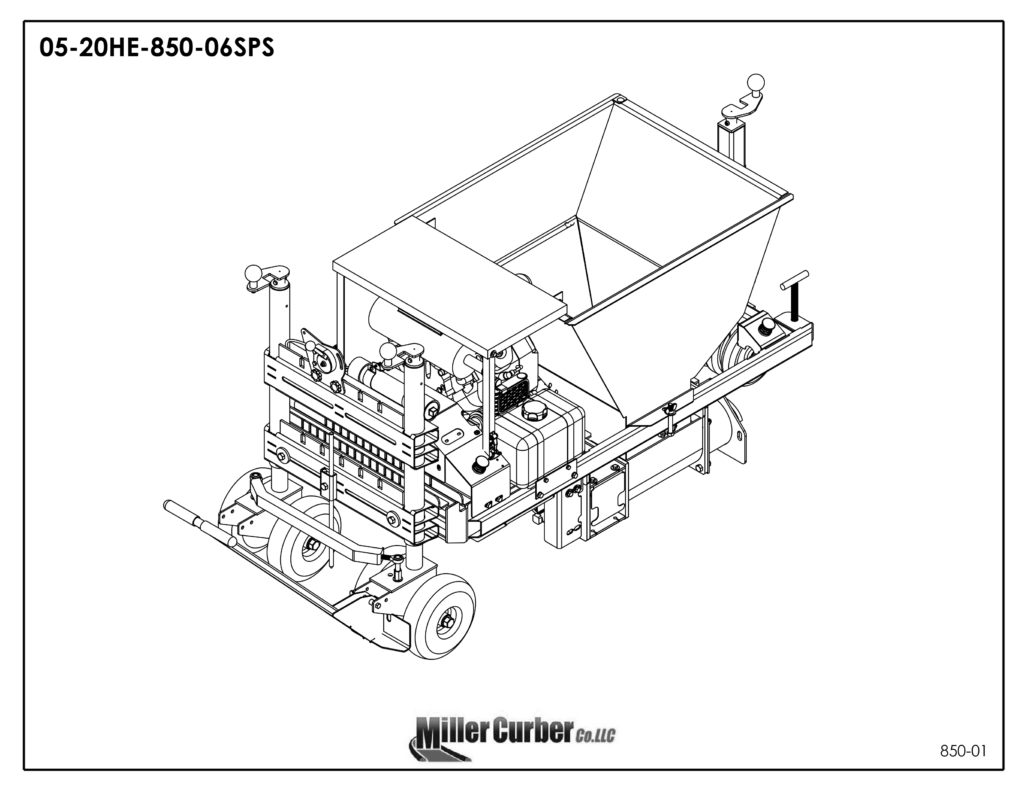

850 Parts
To help us find your part, look through the images of your particular machine, then copy and paste the item no. part number description into the Parts Finder text box under – List the parts you need. Assemblies at the bottom, please scroll down.
ITEM NO. PART NUMBER DESCRIPTION
Copy and paste the part’s – item no. part number description – into the Parts Finder text box under – List the parts you need. Then click NEXT to complete the form. Assemblies at bottom, please scroll down.
1 45029-01 MC-850 FRAME WELDMENT
2 45015-01 WHEELBARROW HOPPER, LH
3 45140-25 FRAME EXT. MC850/900
4 45015-12 REMOVABLE HOPPER SIDE PLATE
5 HHCS, 1/2-13 UNC x 3″ LG.
6 45140-31 FRONT END CLAMP WASHER
7 45003-11 CURBFORM HOLD DOWN SCREW
8 45012-13 HOPPER CLAMP
9 HHCS, 3/8-16 UNC x 2-1/2″ LG.
10 LOCK NUT, 3/8-16 UNC
11 USS FLAT WASHER, 1/2″
12 WING NUT, 1/2-13 UNC
13 45050-18 CHAIN GAURD
14 USS FLAT WASHER, 3/8″
15 LOCK WASHER, 3/8″
16 HHCS, 3/8-16 x 1″ LG.
17 45013-09 HOPPER ADJUSTING PLATE
18 SAE FLAT WASHER, 5/16″
19 HHCS, 5/16-18 UNC x 3/4″ LG.
20 NYLOK LOCK NUT, 5/16-18 UNC
21 45043-04 EMERGENCY STOP SWITCH, ELECTRIC START
22 MS0200 RUBBER HOOD LATCH
23 45145-20 ENGINE COVER W/ LABELS
24 45145-10 ENGINE COVER BRACE
25 45035-01 LIFTING LUG
26 HHCS, 1/2-13 UNC x 1-3/4″ LG.
27 SAE FLAT WASHER, 1/2″
28 LOCK NUT, 1/2-13 UNC
29 45157-02 FUEL TANK BRACKET
30 HHCS, 5/16-18 UNC x 1″ LG.
31 45145-17 RETRACTABLE PLUNGER
32 LOCK WASHER, 1/4″
33 HHCS, 1/4-20 UNC x 3/4″ LG.
34 HHCS, 3/8-16 UNC x 1-1/4″ LG.
35 45157-01 PLASTIC FUEL TANK
36 45002-11 MC-860/900 MOTOR MOUNT
37 45016-17 IDLER BRACKET WELDMENT
38 45016-18 IDLER BRACKET RETAINING PLATE
39 45016-21 IDLER BRACKET TUBE
40 42108-07 3/8″ CAGE NUT
41 45016-10 IDLER SPROCKET
42 45050-02 2 GROOVE Q.D. SHEAVE
43 45050-03 Q.D. BUSHING FOR 4050-02
44 45050-05 GEAR REDUCER
45 BE0100 1-1/4″ 2-BOLT FLANGE BEARING
46 45050-23 COG “V” BELT
47 45050-16 OUTPUT SHAFT
48 45024-03 SAFETY TORQUE ARM
49 HHCS, 1/2-13 UNC x 1-1/2″ LG.
50 45008-10 SHEAVE GAURD
51 SHOULDER BOLT, 5/8-11 UNC x 3/4 DIA x 2″ LG.
52 BE0200 1-1/4″ 4-BOLT FLANGE BEARING
53 HEX NUT, 1/2-13 UNC
54 LOCK WASHER, 1/2″
55 HHCS, 1/2-13 UNC x 1-1/4″ LG.
56 SAE FLAT WASHER, 3/8″
57 HHCS, 3/8-16 UNC x 3/4″ LG.
58 HHCS, 5/16-18 UNC x 1-1/2″ LG.
59 HHCS, 1/2-13 UNC x 7-1/2″ LG.
60 HHCS, 3/8-16 UNC x 4″ LG.
61 45024-02 TORQUE ARM COMPRESSION SPRING
62 45024-09 SAFETY TORQUE ARM HANDLE
63 45024-14 SAFETY TORQUE ARM STUD
64 45024-04 SAFETY TORQUE ARM BRACKET
65 HEX NUT, 5/8-11 UNC
66 45151-01 20.3 HP HONDA ENGINE
67 45151-07 HONDA MUFFLER FOR MC-850/900
68 CL0200 CLUTCH, 1″ BORE, HVY. DUTY
69 HHCS, 3/8-16 UNC x 1-3/4″ LG.
70 45033-07 TALL WHEEL BRACKET HVY DTY
71 45036-11 JACK HANDLE ASSEMBLY
72 BE0600 JACK ASSEMBLY THRUST BEARING
73 45032-10 JACK SCREW, TALL WHEEL ASSEMBLY
74 MS0400 JACK HANDLE KNOB
75 45158-07 TALL REAR WHEEL FORK ASSEMBLY
76 45032-03 TALL REAR WHEEL HSG ASSY
77 45094-14 8″ x 2-1/2″ RUBBER WHEEL W/ ROLLER BEARING
78 USS FLAT WASHER, 3/4″
79 47132-24 CARRIAGE BOLT, 1/2-13 UNC x 3-1/2″ LG.
80 47139-37 CARRIAGE BOLT, 1/2-13 UNC x 3″ LG.
81 HHCS, 1/4-20 UNC x 1-1/2″ LG.
82 LOCK NUT, 1/4-20 UNC
83 45131-03 THROTTLE PLATE CLAMP
84 45131-02 THROTTLE MOUNTING PLATE
85 45132-43 THROTTLE CONTROL
86 HHCS, 1/4-20 UNC x 1-1/4″ LG.
87 45132-44 BULK HEAD FITTING
88 45131-07 20.3 HP HONDA THROTTLE CABLE ASSY.
89 45130-27 HONDA THROTTLE WIRE SWIVEL
90 45026-01 TALL FRONT WHEEL FORK HOUSING
91 45158-15 TALL FRONT WHEEL FORK
92 45020-13 STEERING HANDLE W/ GRIPS
93 CG0100 GRIP, HANDLEBAR
94 45140-23 CENTER WHEEL SPACER
95 45140-11 PNEUMATIC WHEEL SPACER
96 45140-12 PNEUMATIC TIRE AND RIM ASSY
97 45094-16 AXEL, 3/4-10NC x 11″ LG W/LOCKNUTS
98 45031-17 CURBER MARKING ROD BACKPLATE
99 45031-11 MC-550/650/850 MARKER POINTER
100 45031-21 FRONT END CLAMP RETAINING NUT
101 45031-18 MARKER HOLDER ROD BRACKET
102 HHCS, 1/2-13 UNC x 6-1/2″ LG.
103 45059-08 TIE ROD
104 45059-04 MALE TIE ROD END W/ STUD
105 45059-11 COUPLING NUT, 1/2-20 UNF x 1-1/4″ LG.
106 HHCS, 1/2-20 UNF x 1″ LG.
107 48200-26 THROTTLE MOUNT KNOB
108 SK0300 23 TOOTH SPROCKET
109 45050-10 ROLLER CHAIN, 37″ LONG
110 45011-13 6″ HVY DTY AUGER HOUSING W/SHAFT GUARDS
111 45014-06 6″ CAST COMPACTION TUBE
112 45023-01 SOLID AUGER SHAFT
113 45018-09 6″ SOLID AUGER, 9″ LONG
114 45010-12 6″ AUGUR SHAFT GAURD
115 HEX NUT, 3/8-16 UNC
116 45019-29 CENTER BELT GUARD COVER
117 45019-18 RIGHT HAND BELT GUARD WELDMENT
118 45019-19 LEFT HAND BELT GUARD WELDMENT
119 44108-07 MANUAL TUBE MOUNTING CLAMPS
120 44108-01 MANUAL TUBE
121 44108-05 MANUAL TUBE CAP
122 45116-19 WRAP-AROUND BATTERY BOX SIDE
123 45116-20 BATTERY BOX BOTTOM
124 45116-21 BATTERY BOX TOP
125 BT0100 BATTERY, 12V DC
126 BF0100 36″ BATTERY POSITIVE CABLE
127 BF0200 BATTERY GROUND CABLE
128 45116-23 BATTERY BOX BOLTS
129 SK0200 15 TOOTH SPROCKET
Assemblies
Tall Front End Assembly consist of: 45026-01, 45036-11, MS0400, 45031-21, 45032-10, BE0600
Tie Rod Assembly consists of part numbers: 45059-08, 45059-11, 45059-12, 45059-04
Tall Rear End Assembly consists of: 45158-07, BE0600, 45032-03, 45032-10, 45036-11, MS0400
5″ Solid Auger Assembly consists of: 45018-18, 45023-01, 45122-01, 45121-11, BE0200, SK0300
5″ Hollow Auger Assembly consists of: 45018-19, 45023-08, 45122-01, 45121-11, BE0200, SK0300
6″ Solid Auger Assembly consists of: 4518-19, 4523-08, 45122-01, 45121-11, BE0200, SK0300
6″ Hollow Auger Assembly consists of: 45018-11, 45023-08, 45010-14, 45014-01, BE0200. SK0300
8″ Solid Auger Assembly consists of: 45126-01, 45023-01, 45127-11, 45128-01, BE0200, SK0300
8″ Hollow Auger Assembly consists of: 45126-07, 45023-08, 45127-11, 45128-01, BE0200, SK0300
Throttle Assembly consists of: 45130-23, 45132-43, 45130-23, 45130-27, 45132-44, 40120-11
Idler Sprocket Assembly consists of: 45016-10, 45016-17, 45016-21, 45016-22, 45016-18
