Parts Finder

650 Parts

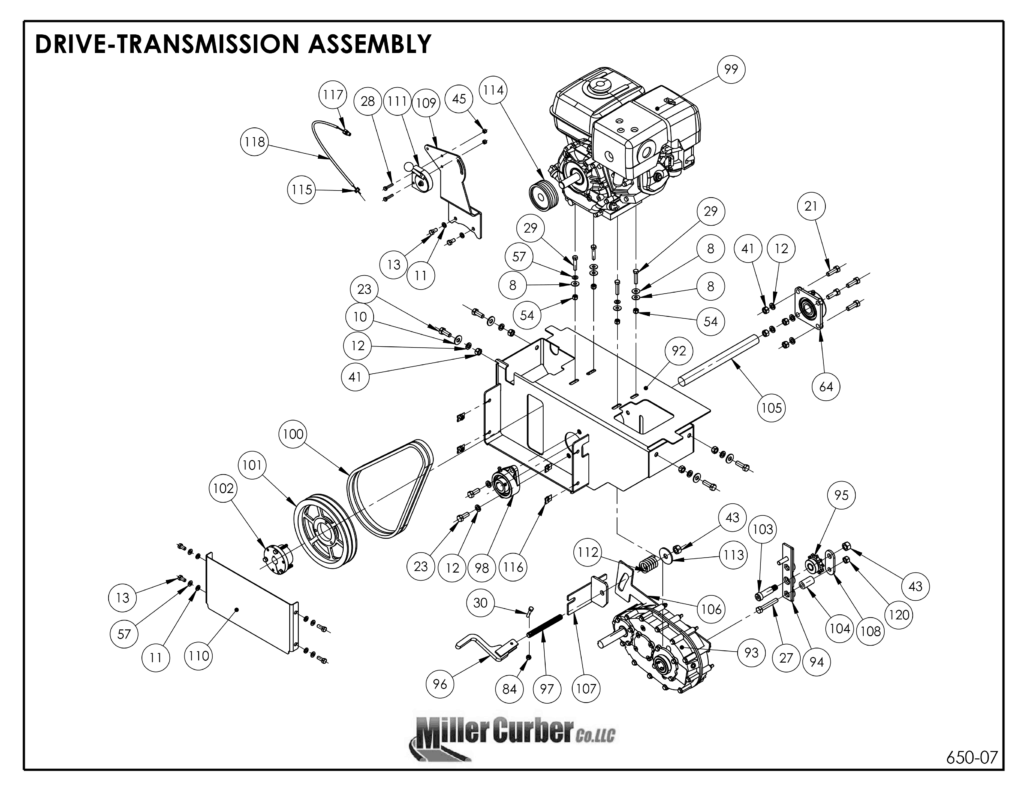

To help us find your part, look through the images of your particular machine, then copy and paste the item no. part number description into the Parts Finder text box under – List the parts you need. Assemblies at the bottom, please scroll down.

[mwai_chatbot id=”default”]

ITEM NO. PART NUMBER DESCRIPTION

Copy and paste the part’s – item no. part number description – into the Parts Finder text box under – List the parts you need. Then click NEXT to complete the form. Assemblies at bottom, please scroll down.

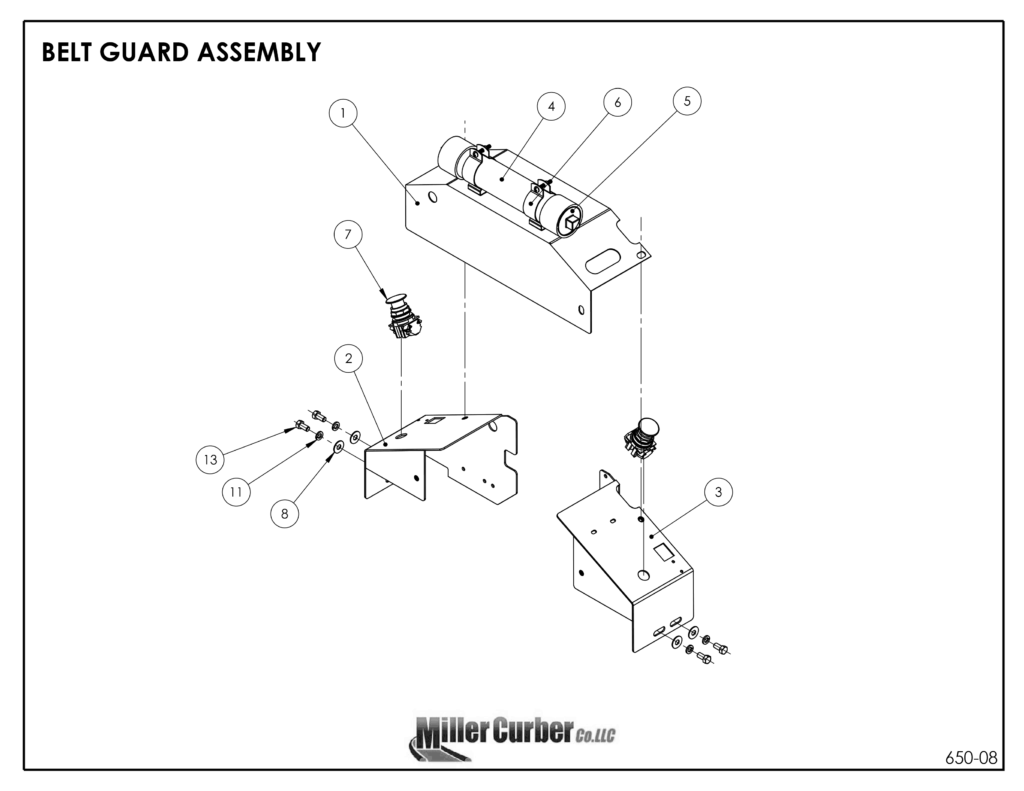

  • 1 45019-29 CENTER BELT GUARD COVER
  • 2 45019-18 RIGHT HAND BELT GUARD WELDMENT
  • 3 45019-19 LEFT HAND BELT GUARD WELDMENT
  • 4 44108-01 MANUAL TUBE
  • 5 44108-05 MANUAL TUBE CAP
  • 6 44108-07 MANUAL TUBE MOUNTING CLAMPS
  • 7 45043-04 EMERGENCY STOP SWITCH, ELECTRIC START
  • 8 FLAT WASHER, 3/8″
  • 9 FLAT WASHER, 3/4″
  • 10 FLAT WASHER, 1/2″
  • 11 LOCK WASHER, 3/8″
  • 12 LOCK WASHER, 1/2″
  • 13 HHCS, 3/8-16 UNC x 3/4″ LG.
  • 14 HHCS, 1/4-20 UNC x 1-1/2″ LG.
  • 15 HHCS, 3/8-16 UNC x 4″ LG.
  • 16 HHCS, 1/2-13 UNC x 4″ LG.
  • 17 HHCS, 1/2-13 UNC x 3-3/4″ LG.
  • 18 HHCS, 1/2-20 UNF x 1″ LG.
  • 19 HHCS, 3/8-16 UNC x 2-1/2″ LG.
  • 20 HHCS, 5/16-18 UNC x 1″ LG.
  • 21 HHCS, 1/2-13 UNC x 1-1/2″ LG.
  • 22 HHCS, 1/2-13 UNC x 1-3/4″ LG.
  • 23 HHCS, 1/2-13 UNC x 1-1/4″ LG.
  • 24 HHCS 3/8-16 UNC x 2-1/4″ LG.
  • 25 HHCS, 3/8-16 x 1″ LG.
  • 26 HHCS, 5/16-18 UNC x 3/4″ LG.
  • 27 HHCS, 1/2-13 UNC x 3″ LG.
  • 28 HHCS, 1/4-20 UNC x 1-1/4″ LG.
  • 29 HHCS, 3/8-16 UNC x 1-3/4″ LG.
  • 30 HHCS, 5/16-18 UNC x 1-1/2″ LG.
  • 31 45034-15 SHORT ADJUSTING SCREW WELDMENT
  • 32 45036-11 JACK HANDLE ASSEMBLY
  • 33 45039 REAR WHEEL FORK, SHORT
  • 34 45034-03 REAR JACK COVER WELDMENT
  • 35 45033-01 REAR JACK CLAMP BRACKET, SQUARE TUBE
  • 36 WT0100 8″ x 2″ RUBBER WHEEL W/ ROLLER BEARING
  • 37 BE0600 JACK ASSEMBLY THRUST BEARING
  • 38 CARRIAGE BOLT, 1/2-13 UNC x 3-1/2″ LG.
  • 41 HEX NUT, 1/2-13 UNC
  • 42 HEX NUT, 3/8-16 UNC
  • 43 HEX NUT, 5/8-11 UNC
  • 44 MS0400 JACK HANDLE KNOB
  • 45 LOCK NUT, 1/4-20 UNC

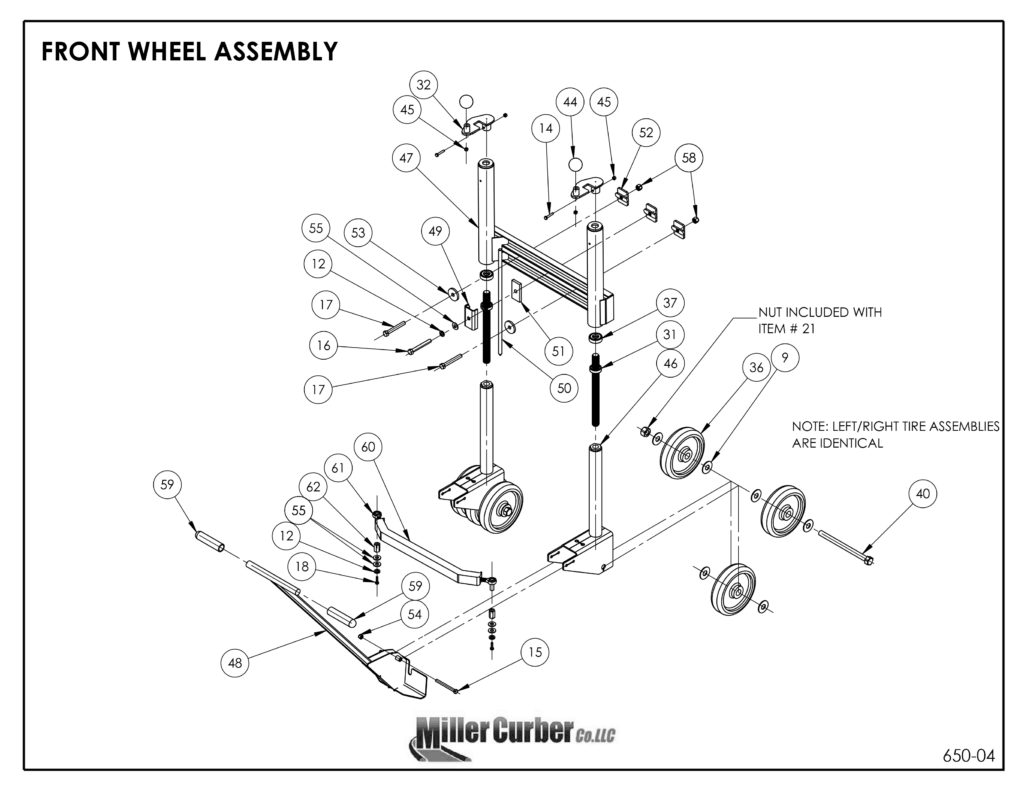

  • 46 45038-01 MC-550/650 FRONT WHEEL FORK
  • 47 45005-02 FRONT JACK HOUSING
  • 48 45020-13 STEERING HANDLE
  • 49 45031-18 MARKER HOLDER ROD BRACKET
  • 50 45031-11 MC-550/650/850 MARKER POINTER
  • 51 45031-17 CURBER MARKING ROD BACKPLATE
  • 52 45031-21 FRONT END CLAMP RETAINING NUT
  • 53 45140-31 FRONT END CLAMP WASHER
  • 54 LOCK NUT, 3/8-16 UNC
  • 55 SAE FLAT WASHER, 1/2″
  • 56 SAE FLAT WASHER, 5/16″
  • 57 SAE FLAT WASHER, 3/8″
  • 58 LOCK NUT, 1/2-13 UNC
  • 59 CG0100 GRIP, HANDLEBAR
  • 60 45059-08 TIE ROD
  • 61 45059-04 MALE TIE ROD END W/ STUD
  • 62 45059-11 COUPLING NUT, 1/2-20 UNF x 1-1/4″ LG.

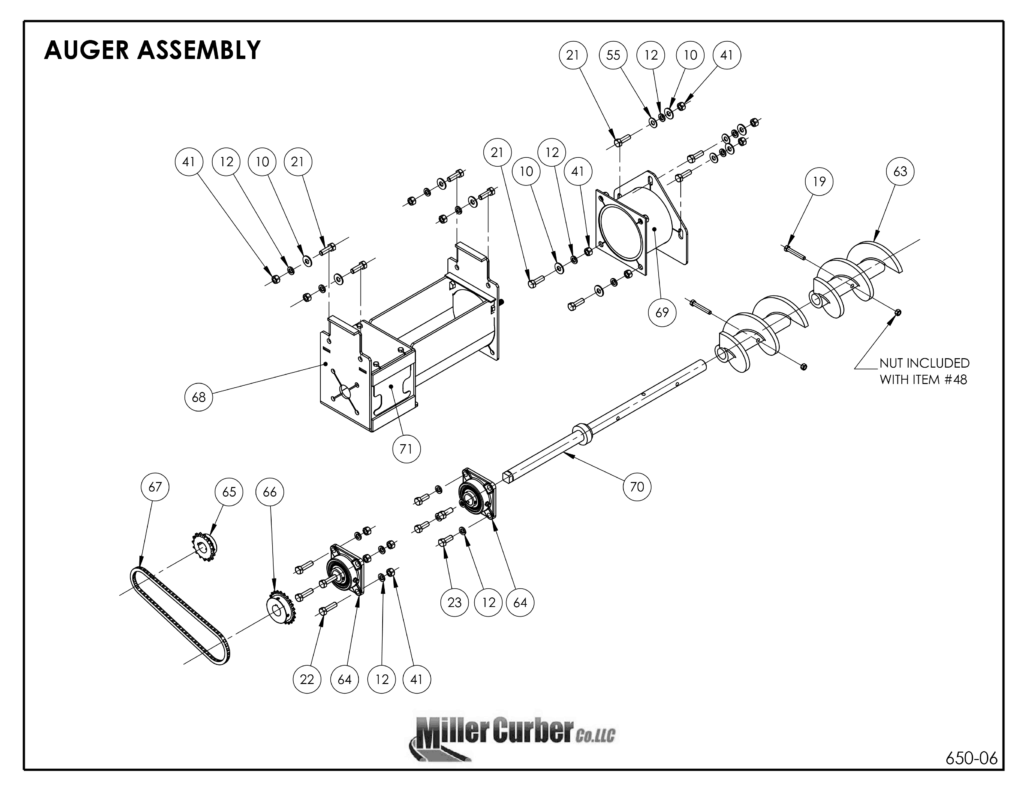

  • 63 45018-09 6″ SOLID AUGER, 9″ LONG
  • 64 BE0200 1-1/4″ 4-BOLT FLANGE BEARING
  • 65 SK0200 15 TOOTH SPROCKET
  • 66 SK0300 23 TOOTH SPROCKET
  • 67 45050-10 ROLLER CHAIN, 37″ LONG
  • 68 45010-01 6″ STANDARD AUGER HOUSING
  • 69 45014-01 6″ COMPACTION TUBE
  • 70 45023-01 SOLID AUGER SHAFT
  • 71 45010-12 6″ AUGUR SHAFT GAURD

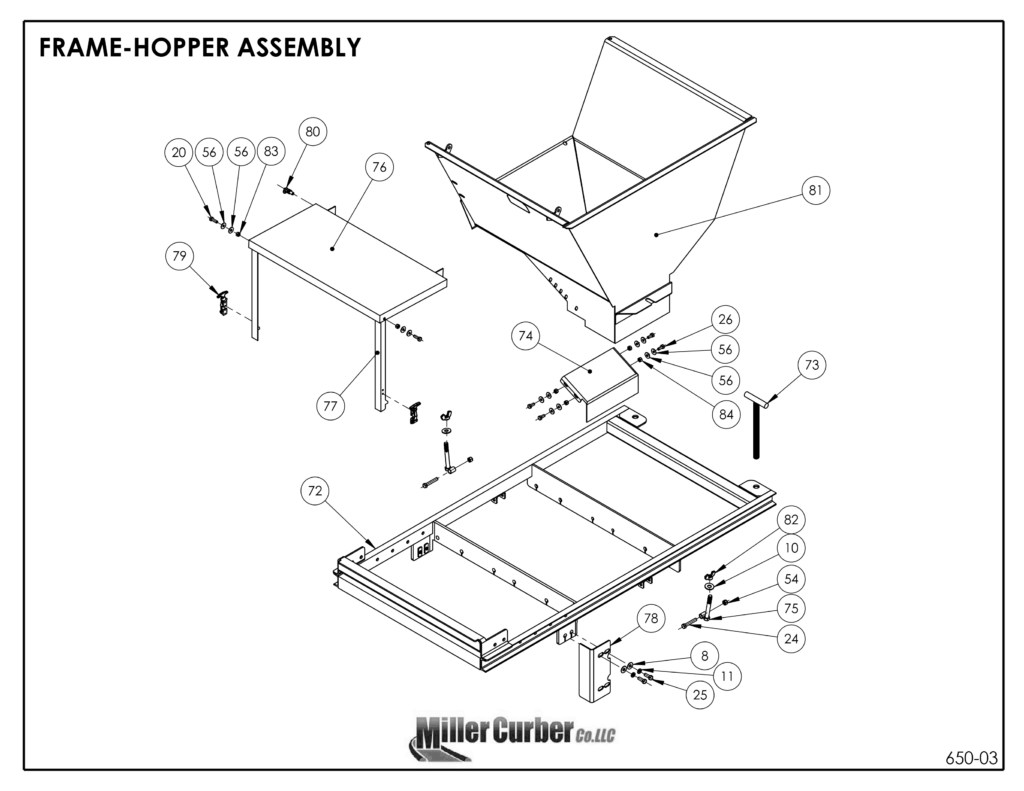

  • 72 45045-01 CURBER FRAME WELDMENT 550/650
  • 73 45003-11 CURBFORM HOLD DOWN SCREW
  • 74 45013-09 HOPPER ADJUSTING PLATE
  • 75 45012-13 HOPPER CLAMP
  • 76 45145-01 ENGINE COVER
  • 77 45145-10 ENGINE COVER BRACE
  • 78 45050-18 CHAIN GAURD
  • 79 MS0200 RUBBER HOOD LATCH
  • 80 45145-17 RETRACTABLE PLUNGER
  • 81 45015-01 WHEELBARROW HOPPER, LH
  • 82 WING NUT, 1/2-13 UNC
  • 83 NYLOK LOCK NUT, 5/16-18 UNC
  • 84 LOCK NUT, 5/16-18 UNC

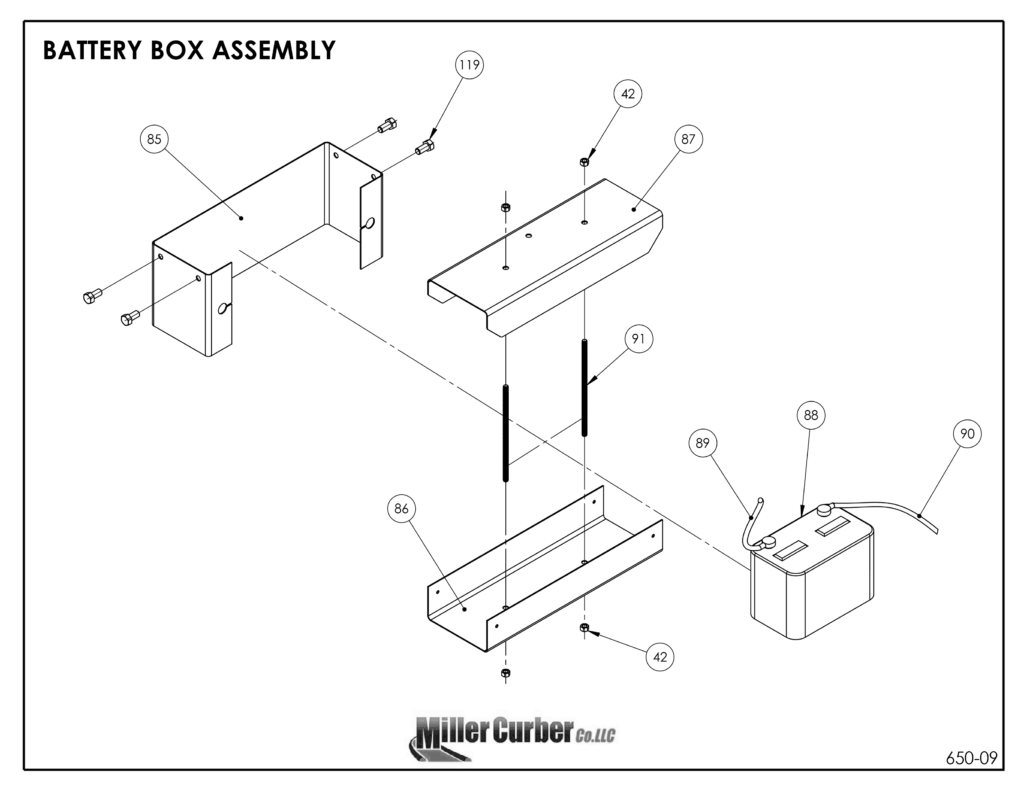

  • 85 45116-19 WRAP-AROUND BATTERY BOX SIDE
  • 86 45116-20 BATTERY BOX BOTTOM
  • 87 45116-21 BATTERY BOX TOP
  • 88 BT0100 BATTERY, 12V DC
  • 89 BF0200 BATTERY GROUND CABLE
  • 90 BF0100 36″ BATTERY POSITIVE CABLE
  • 91 45116-23 BATTERY BOX BOLTS
  • 92 45008-01 CURBILDER MOTOR MOUNT
  • 93 45050-05 GEAR REDUCER
  • 94 45016-17 IDLER BRACKET WELDMENT
  • 95 45016-10 IDLER SPROCKET W/ BUSHING
  • 96 45024-09 SAFETY TORQUE ARM HANDLE
  • 97 45024-14 SAFETY TORQUE ARM STUD
  • 98 BE0100 1-1/4″ 2-BOLT FLANGE BEARING
  • 99 EN0600 13HP HONDA, RECOIL START
  • 100 45050-23 COG “V” BELT
  • 101 45050-02 2 GROOVE Q.D. SHEAVE
  • 102 45050-03 Q.D. BUSHING FOR 4050-02
  • 103 45016-22 SHOULDER BOLT, 3/4-10 UNC x 2″ LG.
  • 104 45016-21 IDLER BRACKET TUBE
  • 105 45050-16 OUTPUT SHAFT
  • 106 45024-03 SAFETY TORQUE ARM
  • 107 45024-04 SAFETY TORQUE ARM BRACKET
  • 108 45016-18 IDLER BRACKET RETAINING PLATE
  • 109 45130-23 13HP HONDA THROTTLE MOUNTING BRACKET
  • 110 45008-10 SHEAVE GAURD
  • 111 45132-43 THROTTLE CONTROL
  • 112 45024-02 TORQUE ARM COMPRESSION SPRING
  • 113 FLAT WASHER, 5/8″ GRADE 8
  • 114 45048-07 CLUTCH, 1″ BORE, STD. DUTY
  • 115 45130-27 HONDA THROTTLE WIRE SWIVEL
  • 116 45108-07 3/8″ CAGE NUT
  • 117 45132-44 BULK HEAD FITTING
  • 118 45130-34 13 HP HONDA THROTTLE CABLE ASSEMBLY
  • 119 BATTERY BOX HARDWARE

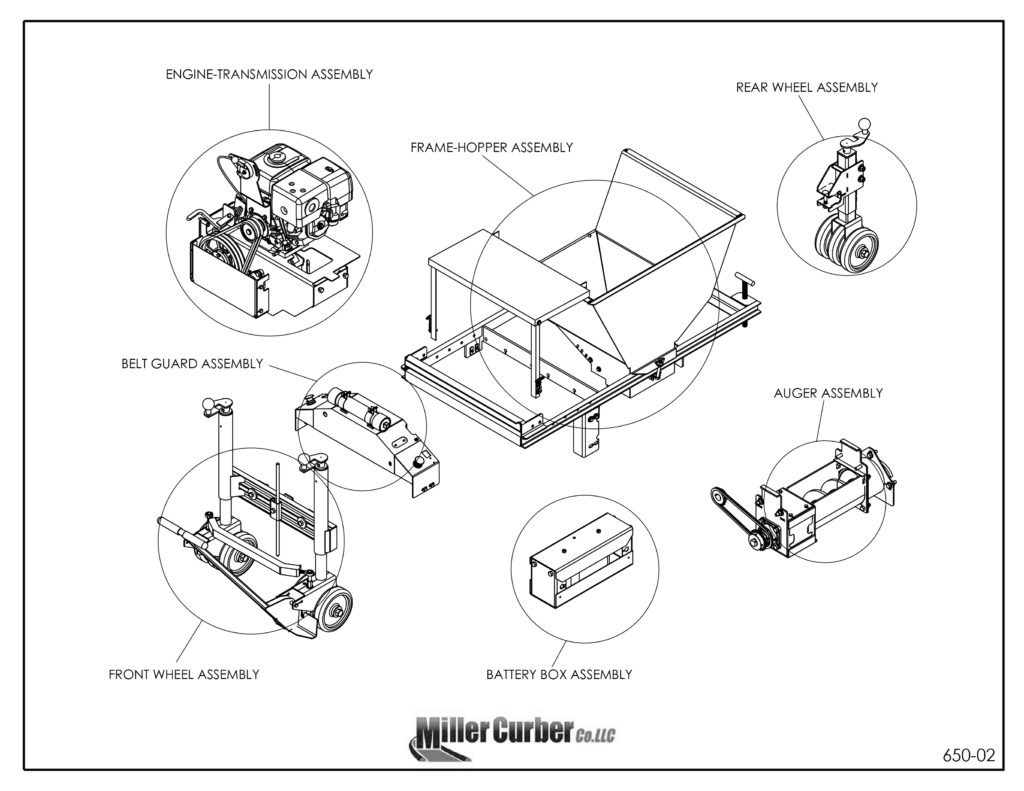

Assemblies

  • Short Front End Assembly consists of: 45034-15, 45036-11, 45038-01, 45005-02, 45031-21, MS0400 & tie rod assembly
  • Tie Rod Assembly consists of part numbers: 45059-08, 45059-11, 45059-12, 45059-04

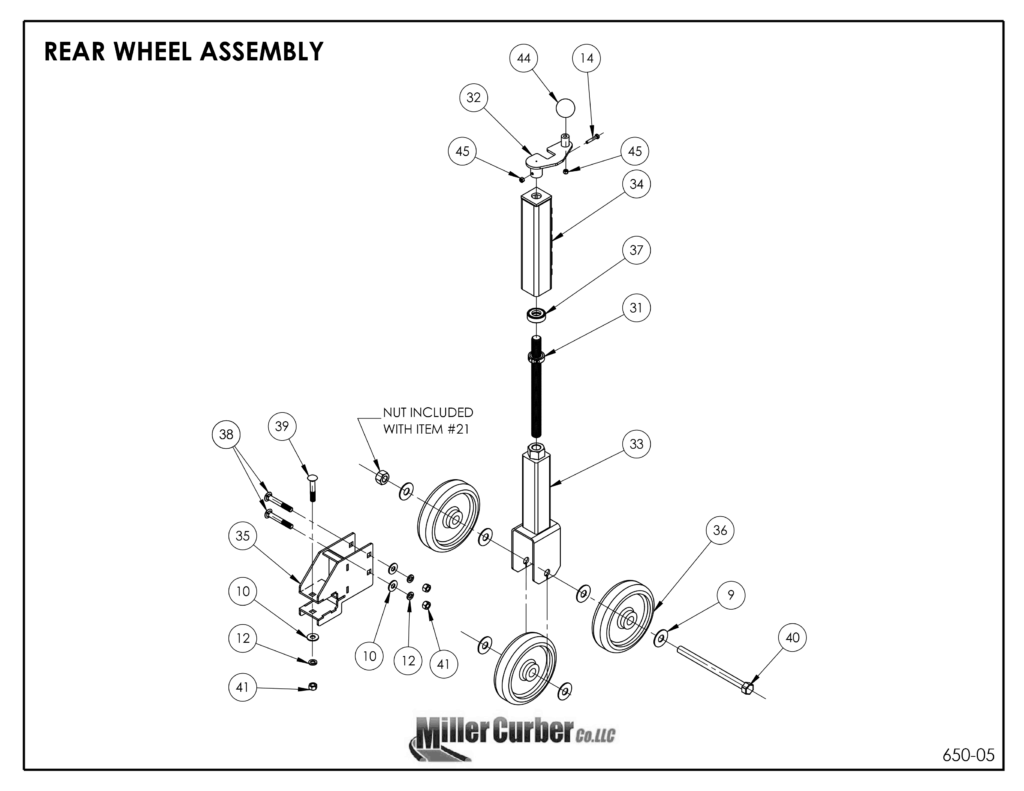

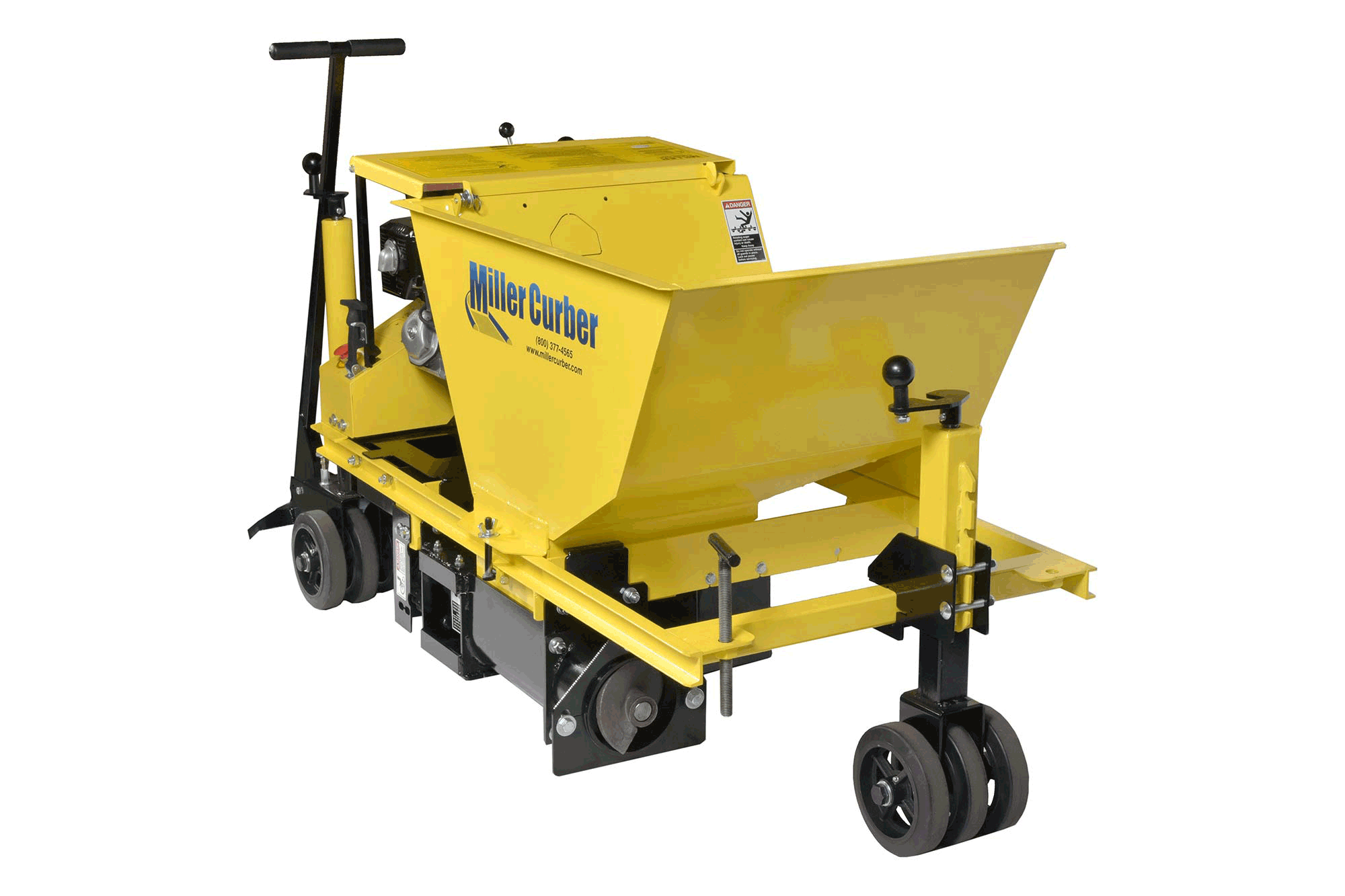

  • Short Rear End Assembly consists of: 45034-15, 45036-11, 45039-01, 45034-03, BE0600, MS0400 & tie rod assembly
  • Short Rear End Assembly with a round cross member consists of: 45034-15, 45036-11, 45039-01, 45034-03, BE0600, MS0400
  • 5″ Solid Auger Assembly consists of: 45018-18, 45023-01, 45122-01, 45121-11, BE0200, SK0300
  • 5″ Hollow Auger Assembly consists of: 45018-19, 45023-08, 45121-11, BE0200, SK0300
  • 6″ Solid Auger Assembly consists of: 45018-19, 45023-08, 45122-10, 45121-11, BE0200, SK0300
  • 6″ Hollow Auger Assembly consists of: 45018-11, 45023-08, 45010-14, 45014-01, BE0200, SK0300
  • 8″ Solid Auger Assembly consists of: 45126-01, 45023-01, 45127-11, 45128-01, BE0200, SK0300
  • 8″ Hollow Auger Assembly consists of: 45126-07, 45023-08, 45127-11, 45128-01, BE0200, SK0300
  • Throttle Assembly consists of: 45130-23, 45132-43, 45130-24, 45130-27, 45132-44, 40120-11
  • Idler Sprocket Assembly consists of: 45016-10, 45016-17, 45016-21, 45016-22, 45016-18
